z_GEN_BRICKMAIN_01

• creates stone brick variations , fractured , cracks , chipped
• outputs lowpoly and hipoly meshes with piecenum , and a distributed grid for texture baking highs to low

z_GEN_STAIRWAY

generate stairway made of stone bricks , from input curve or ramp parameter

z_GEN_STONE_BRICK_CIRCLE

• generates a circular shaped brick section by evenly voronoi fracturing and extruding toward center .
• applies additional noise and separation to resemble stone surface

z_CURL_LINES_THEN_PLACE_SPIRALS

creates curllines on the surface of mesh then copies spirals to the geometry with collision detection

z_GEN_CIRCLES_RADIATE_PATTERN

• creates circular patterns inspired by asian design . scatters circles , then radiate those circles outward while avoiding intersection by order or generation .

z_HELIX_ALONG_CURVE

• creates a helix curves along input curve

z_GEN_ROCK_THIRDS

creates a rock stylized by lot subdivision rule of thirds , setup for PDG

z_DIFFUSION_REACTION_TUBES

fills mesh with intestine brain like tubes based on simulated diffusion chemical reaction

z_CURL_LINES_LOOP

• create lines curling on mesh surface using curlnoise loop

z_DRIP_GRUNGE

• drips grunge under overhangs of input mesh . longer when near drip neighboors .
• output mesh or bake vertex color

z_GEN_REVOLVE_BASIC

• creates revolved mesh , path deformed by backbone curve , input profile and backbone curves .
• handles profile centering by curve bounds , useful when creating mesh curves in level locations away from 0,0,0 .

z_WIRE_OVERLAPING_OFFSET

• creates wires rayed to ground , properly overlapping . input curves and collision

z_GEN_PILLAR

• generate pillar - holding multiple brick generators and circle brick generators assembled to create a full pillar .

z_GEN_ROCK_4m

• generates rock surface , fractures input mesh and applies randomized offsets , setup for pdg randomness

z_GEN_TUBES_FINDPATHS_FROM_CURVE

• generates tubes that procedurally find a path to not intersect other tubes following along the length of a guide curve

z_GEN_CRACK_BRANCHING

• creates branching crack mesh used for booleaning other meshes

z_GEN_GIZMO

• axis gizmo for debug

z_GLASS_BOOLEAN

• input mesh with irregular shaped holes , creates an intersection plane cut to fit , adds inset with vertex color falloff from edge for shader

z_GEN_LATTICE_GRIDMESH

• creates a box of grids with interior points automatically around the bounds of input object
• ideal for use with lattice deformer

z_GEN_HEXA_STRUCTURE

• creates a hexagon support structure based on input mesh

z_GEN_RUNES

creates rune like symbols

z_PLANTS_HELIX_ROOTS

• creates winding intertwined roots from an input guide line .

z_PLANTS_VINES_W_LEAVES

• creates vines conforming to surface of mesh guided by line .
• iterative growth step collision checks , slow however precise , leaves avoid collision .

• z_PLANTS_VINES_W_LEAVES.hda in unreal 4 houdini engine , leaves instances input from static mesh

z_PLANTS_MOSS_HANGING

creates hanging placements of moss mesh , leaves , spirals . automatically placed onto input mesh , wrapped to not intersect .

z_PLANTS_VINES_GUIDED

generate a vine tube using a wandering path finder guided variably by a curve or direction vector

z_PLANTS_TREE_PATHFIND

generate a tree using shortest path thru curves scattered and connected around collision objects and previous tree roots

z_PLANTS_FUNGI

• creates a fungus mushroom mesh

z_PLANTS_LEAF

• creates a hipoly leaf mesh

z_PLANTS_BARK

• creates bark pieces for tree

z_PLANTS_BARK_PLACER

layout bark on mesh surface guided by curves , smooth aligned , used with tree

z_PLANTS_PETAL_FORM

• generates petal from curve backbone and multiple warped elipse curves defining the shape changes over the length of the backbone

z_PLANTS_SCATTER_LEDGE

places hanging plants instances aligned along edges of input mesh with collision checks

z_ITEM_ABILITY_ICON

creates an icon of ability , setup for TOPs randomization to generate dataset

z_ITEM_RING

creates variety of ring items , helix , diffusion tubes , rock gemstones , setup for TOPs randomization by wedgenum .

z_ITEM_RING_FROM_IMAGE

• creates a projected 3d ring from isometric image , setup for TOPs processing folder of images to 3d relit renders

• in this example , isometric ring images mutated by text-to-image guided alteration ( VQGAN+CLIP ) are the input , projected into 3d and rendered with consitent lighting

z_ITEM_SWORD

creates sword item variants

z_ITEM_SWORD_FROM_IMAGE

creates a sword mesh from image , traces png alpha , orients vertically , thickens from center skeleton line , sets uvs to match image , bakes colors to vertex colors

z_ITEM_HELM

creates variety of helm items in TOPS by wedgenum

z_ITEM_HELM_FROM_IMAGE

projects a helm mesh from image

z_ITEM_POTION

• creates variety of potion items in TOPS by wedgenum

z_ITEM_POTION_FROM_IMAGE

• creates 3d potion from image

z_ITEM_BOW

creates bow item variants

z_ITEM_POTION

creates variety of potion items in TOPS by wedgenum

z_PATH_BASE

• create a path floor section and collision for gameplay , creates directional variants for snapmap . this is the basis for all other path generation

z_PATH_LEDGE

creates environment mesh for isometric snapmap pieces , used with PATH_BASE as its inputs for PDG

z_PATH_DIRECTIONS

• cycle thru 90 degree rotations and mirrored variantions . for use with path tool

z_PATH_LEDGE_CAVE_STALAG

• creates modular PATH cave for use with snapmap

z_PATH_LEDGE_DIFFUSION

• creates modular PATH diffusion reaction for use with snapmap

z_PATH_LEDGE_FOREST

creates modular PATH forest for use with snapmap

z_PATH_LEDGE_POOLS

creates modular PATH pools for use with snapmap

z_PATH_REVIEW

layout path based meshes to review their connections

z_PATH_2SPLINE_COLLISION

• input two curves defining the border of a path , creates floor geo and collision for gameplay in ue4

z_PATH_ISO_EXTRUDE

isometric camera angle extrude , for use with PATH to avoid camera blocking geo

z_COPY_TO_POINTS_BY_PIECENUM_INTERSECTIONCHECK

• a placement tool for multiple objects variants with collision checks .
• a brute force object packing with options for filling gaps , and tileable or radial collision .
• copies meshes using 'piecenum' prim attribute .

z_COPY_MESH_ALONG_CURVE_DEFORM

• pipe / wire curve deform , similar to path deform modified specifically for repeating modular meshes .
• copies input mesh repeating along curve without stretching , adds cuts for smoother bending , projects normals outward from curve .

z_COPY_TO_EVENLY_DISTRIBUTED_GRID

• copy by piecenum to dynamic evenly spaced grid - useful when baking and review

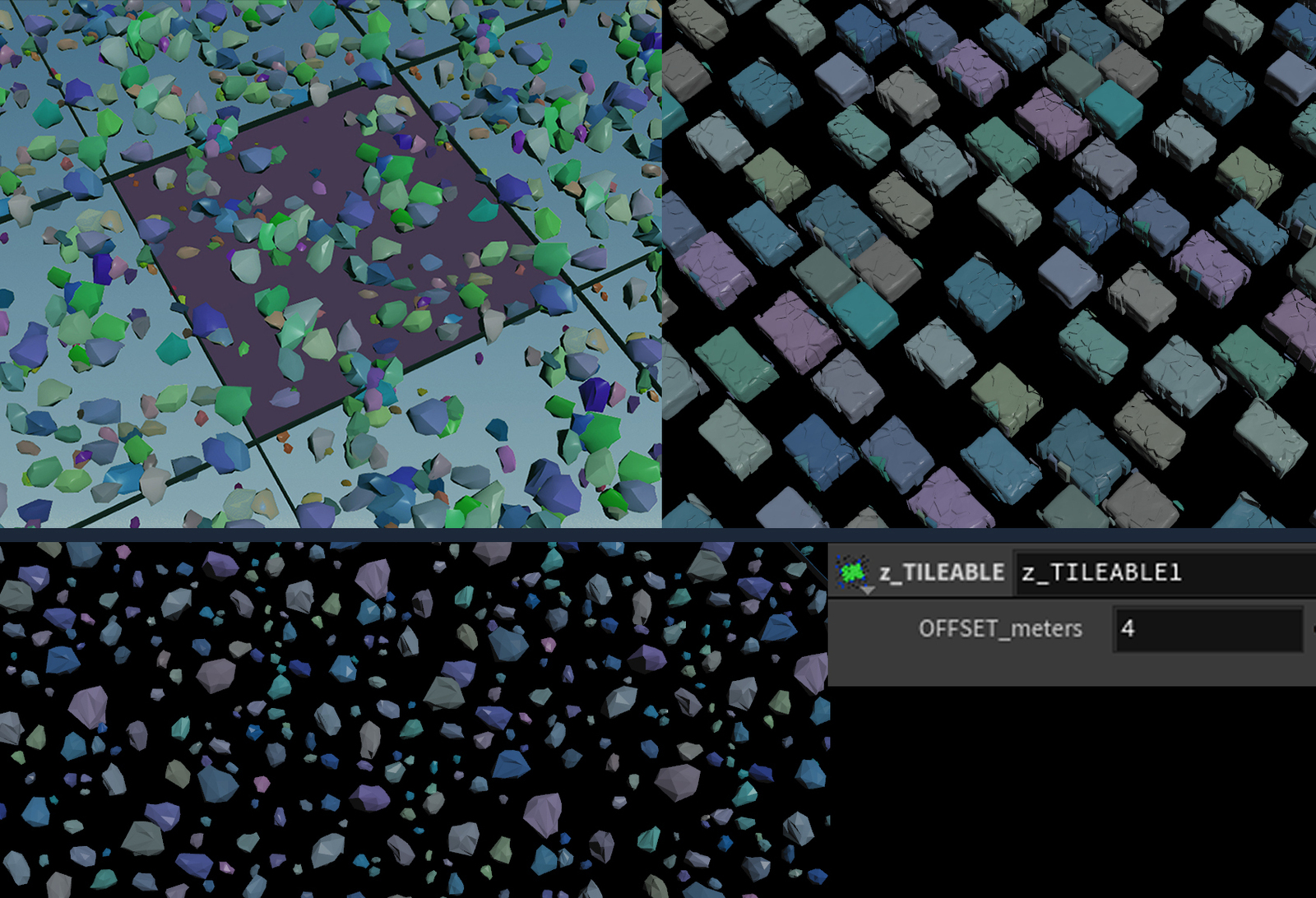

z_TILEABLE

• copies input to each of the nearby quadrants preview tiling ( 4m default )

z_TRANSFORM_ITERATE_COLLISION_CHECK

• iteratively move pieces towards nearest goal while avoid itersection with collision ( an iterative simplified gravity / attraction sop based )
• pieces optionally jittered during process to fit closer together

z_VORONOI_FRACTURE_GRADIENT_OFFSET

• voronoi fractures then offsets clusters by multiple world space gradients .
• useful for rock and cliff forms .

z_DEFORM_BY_AXIS

• bounding box ramp deformation , setup to allow multiple axis ramps
• useful for procedural relative deformations

z_NOISE_DISPLACE_MASKED

• 3d noise ramp creates a mask modulating the displacement of mesh by a second 3d noise
• useful for hi poly mesh surfacing

z_MESH_CHIP_CRACK

• boolean subtract chipping and crack meshes onto the surface based on curvature and fit projecting the crack meshes .

z_MESH_WRAP_DEFORM_BY_UV

• deform mesh to another mesh by using the flattened UVs , useful to wrap a pattern around another

z_MESH_SURFACE_SIMPLE_REMESH

• ray projects a grid unto the input geo and remeshes then reduces .
• helpful for fixing chaotic geo and non manifold errors .

z_PLANARIZE_MULTIPLE_SURFACES

• input mesh surface is segmented by avg n and flattened from multiple directions . useful to randomly planarize from different angles for rock meshes

z_CONFORM_INTERSECTING_LERP

• input mesh is conformed around a given colllision object if is intersecting

z_STAMP_FOREACH_PIECE

• randomized boolean of one mesh on to the surface of variants .
• useful for cutting runes , designs , cracks into bricks

z_SPLIT_CLIP_CREVISE

separate the input into two outputs with an indent along the separation , useful separating environment shell into terraced layers

z_CUT_INTERSECT_DARKEN

darken a surface from the intersections of other objects , with option to boolean those cuts in

z_DEFORM_BY_HELIX

deform the input mesh by a helix fit to the object bounds

z_MESH_SUBTRACT_COLLAPSE_END

simple boolean subtract with option to collapse . useful for quick edits in ue4

z_MESH_SLICER_SAVE

• separates large meshes into worldspace grid sections of specific size and exports them to fbx

z_REMOVE_PIECES_BY_VOLUME

• for each connected element , remove if doesnt match min or max measured volume , also has options of perimeter or other measurements

z_KEEP_ONLY_LARGEST_CONNECTED_ELEMENT

removes smaller detached objects

z_KEEP_BIGGER_OF_TWO

• takes two inputs and ouputs only one ( bigger or smaller )

z_KEEP_ONLY_FIRST_LAST_PRIMS

• carve for prim lines after segments split

z_REMOVE_THIN_MESH

• removes prims based on thickness measurement , then can fill in holes , useful for removing thin slivers

z_UV_AXIS_ALIGN_SNAP

• optimize uv location , moves uvs to zero to one space for precision in games

z_UV_ALIGN_WORLD

• align uv islands to world axis

z_UV_OVERLAP_CHECK

a slow tho absolute uv overlap check , by intersection checks , separates all overlaping prims, then repacks

z_UV_TEXEL_DENSITY_CHECK

check texel density with colorized debug , handles multiple materials with different texture resolutions by specifiying the materials name string and their rez

z_UV_POLYWIRE

• creates polywire with specific UVs , useful when sweep is not producing desired bends
• seam is oriented toward specific direction to better hide from view

z_UV_TRIM

fits uvs into specific trim sheet area while scaling the pieces along an axis relative to their world space

z_LIGHTMAP_UV_GEN

UVs creation for lightmaps , stored to uv1 with higher merge threshold

z_VDB_INTERNAL_FILL

mesh to vdb to mesh , combines multiple lower res vdb's that are eroded to fill in the internal spaces

z_VOXEL_AUTOSIZE

• auto voxel resolution for target polycount , safely lowers resolution on large objects

z_EDGEGROUP_BY_UV_AXIS

• edgegroup based on axis of uvs , useful for polybeveling specific edges procedurally

z_SHRINKWRAP_VORONOI_CLUSTERS

• similar to convex decomposition , cuts mesh into pieces via voronoi , shrinkwraps those pieces . useful for rocky shapes

z_REVERSE_BY_N_UP

• attempts to fix reversed facing ( backfacing ) normals on subobjects for an overhead camera
• useful for fixing exports from some levels that mirrored assets with negative scaling

z_POLYREDUCE_GRADIENT_QUADS

• polyreduce setup with gradient retention to keep mostly quads , with secondary reduction

z_REMESH_RAY_SPHERE

remesh using sphere around object , iteratively raycast and smooth to approximate shape

z_TUBE_MESH_BETWEEN_TO_CIRCLES

input 2 circles , create a cyllinder between them

z_POLYBEVEL_SAFE

polybevel with fix for exploding points

z_CURVE_FROM_TUBE

• input a mesh , outputs a centered curve within the mesh , even if the topology is highly irregular
• similar to the sidefx labs tool = Labs Straight Skeleton 3d

z_CURVES_FROM_UV_ISLANDS

for each uv island create a line curve aligned by the longest angle or vertical\horizontal . useful for generating tree branch curves from existing low poly trees

z_MASK_TO_LINE

• input blured mask of color channel from an image , output a single polypath line .

z_SORT_BY_LINEAXIS

sorts a line contigously linearly along axis , enforcing a point order on a curved line when sort by axis may skip around

z_COLOR_MASK_VERTEX

VARIANTS VERTEX COLORS

RGB vertex color setup for variations , example stone brick structure . - 0 = base - R = vertical gradient - G = occlusion grunge - B = random per element

example : stone base material ( 0 ) darkened by vertical gradient ( R ) , blending dirt in crevices ( G ) , randomly altering the brightness per brick by ( B ) .

//==================================================================================

LAYERED VERTEX COLORS

RGB vertex color setup for material blending on environment meshes . - 0 = occlusion - R = base - G = direction vector - B = secondary mesh proximity

example : dirt in crevices ( 0 ) of rock ( R ) , with moss on top ( G ) , near water ( B ) .

z_COLOR_NOISE_HI

• vertex colors based on multiple ramps driven by curvature , occlusion , and noise
• default stone preset

z_COLOR_LINES_SCRATCH_VTX

cuts in elipses to geo and applys vertex colors for stratches along an axis

z_VERTEXCOLOR_CONVERT

converts standard rgb vertex color blending to multilayer vertex blending with alpha

z_UDIM_CONVERT

convert single material UDIM to multiple materials , and reposition the uvs into zero to one for precision

z_NORMAL_AREA_WEIGHTED

normals smoothed face area weighted alternative

z_SMOOTHING_FROM_UVs

hard edges by uv island for baking

z_COLLISION_INTERSECT_CHECK

detect and show intersections with provided collision geometry . useful to avoid clipping into level geometry beyond a specific distance threshold

z_TEX_SEAM_BLENDER

blend and blur a texture across uv seams to fix small bake errors and make seamless , additionally blending intersections of the meshes when surface details do not share a uvseam edge .. this is WIP bruteforce approach dividing the mesh by texel density and transfering the colors to vertexcolor bluring in worldspace proximity lastly adding in some noise counteract the blur .

z_VFX_SLASH_from_ANIM

create a smoothed swipe mesh for vfx , sword slashing

z_CAM_ISOMETRIC

• camera with crane\boom arm setup matching isometric game settings

z_CAM_PROJECTION_fspy

• a wrapper for fspy hda created by floodini , input fspy json creating camera matching ref image perspective then project that image to floor plane
• nLib fspy_loader = https://github.com/Njordy/nLib
• floodini fspy https://www.youtube.com/watch?v=-WM2hPerYts&ab_channel=Floodini

z_EXPORT_TO_UNREAL

common settings used before exporting fbx to unreal , material parameter conversion , point color to vtx conversion . scale and rotation

z_EXPORT_MAYA_FBX

applies specific detail parameters for maya - named uv channels , named color sets for vertex colors , uv1 to uv2 , preps for export to fbx
